PET Filament Geotextile
HX® Polyester filament nonwoven geotextile is made from polyester filament as raw material, processed by mesh laying equipment and needle punching equipment.In addition to having good mechanical properties, PET filament nonwoven geotextile also has good longitudinal and transverse drainage performance, good elongation performance, and high chemical stability properties such as biological and aging resistance.
Classification :
PRODUCT DETAILS
What is the Polyester filament Nonwoven Geotextile ？

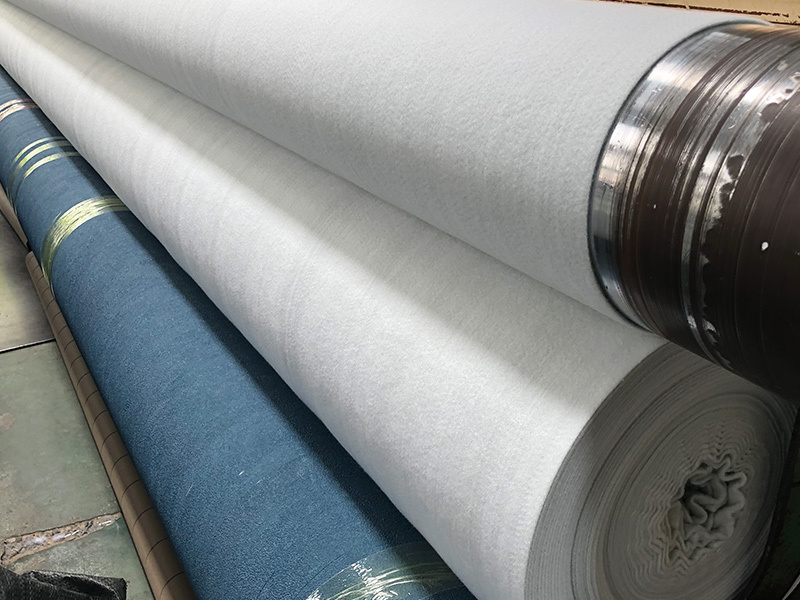

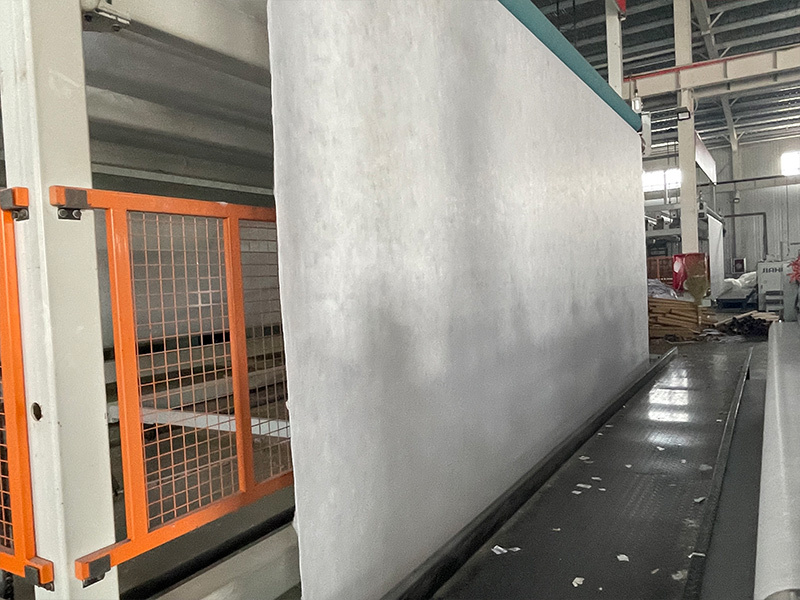

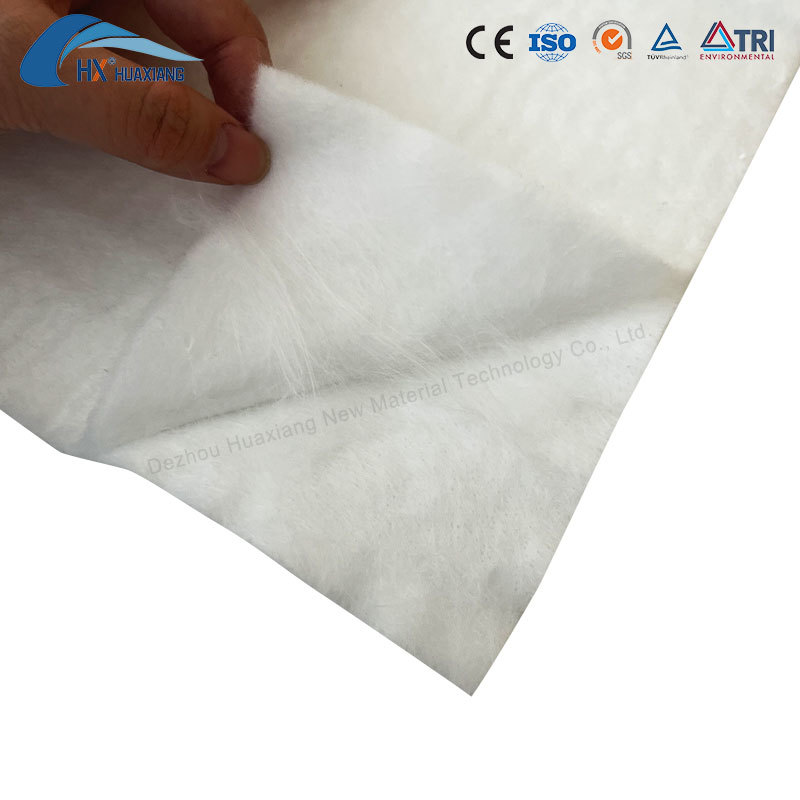

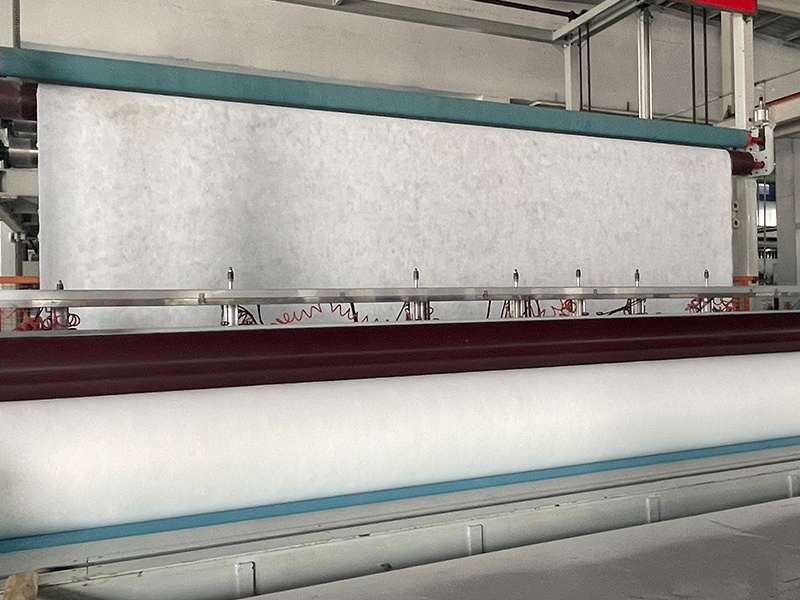

HX® Polyester filament nonwoven geotextile is made from polyester filament as raw material, processed by mesh laying equipment and needle punching equipment.
The specifications of polyester filament nonwoven geotextile can be selected from 80-800 g/m2, abbreviated as “PET filament nonwoven geotextile”. In addition to having good mechanical properties, PET filament nonwoven geotextile also has good longitudinal and transverse drainage performance, good elongation performance, and high chemical stability properties such as biological and aging resistance. It is mainly used for road reinforcement and crack repair to protect soil from loss; Used for filter layer for tailings dam body; Used as an isolation layer between road, airport, railway masonry and foundation; Used for drainage of dam body and concrete lake surface; Used for drainage and other purposes in tunnel lining engineering.
The specifications of polyester filament nonwoven geotextile can be selected from 80-800 g/m2, abbreviated as “PET filament nonwoven geotextile”. In addition to having good mechanical properties, PET filament nonwoven geotextile also has good longitudinal and transverse drainage performance, good elongation performance, and high chemical stability properties such as biological and aging resistance. It is mainly used for road reinforcement and crack repair to protect soil from loss; Used for filter layer for tailings dam body; Used as an isolation layer between road, airport, railway masonry and foundation; Used for drainage of dam body and concrete lake surface; Used for drainage and other purposes in tunnel lining engineering.

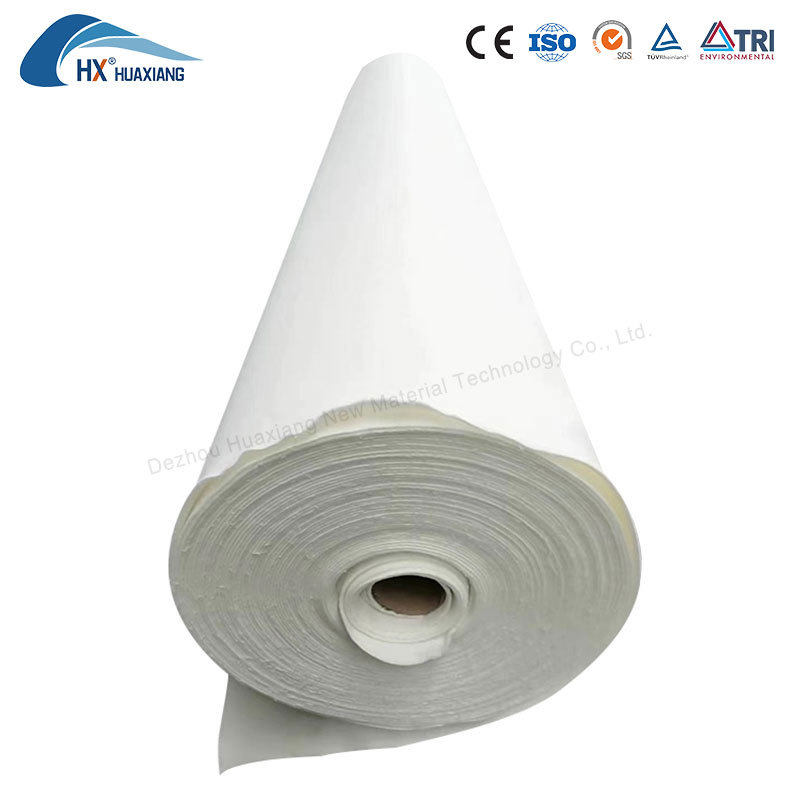

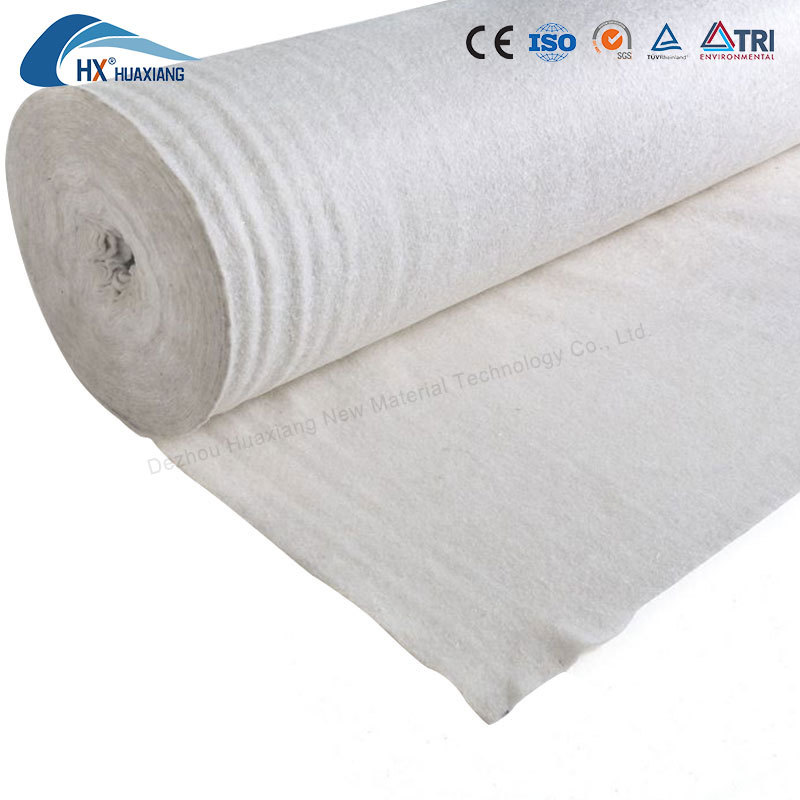

Specification:
Width:1-6m
Length:50-300m as customized
Weight：100-1200g/m2
Color:Black, white,customized products can be supported according to customer needs
Length:50-300m as customized
Weight：100-1200g/m2
Color:Black, white,customized products can be supported according to customer needs
 |
 |
 |
 |
Where is geotextile fabric used?
Polyester filament nonwoven geotextile is made of 100% polyester (PET) as raw material and processed by equipment, commonly used in water conservancy projects, power engineering, highway construction, construction engineering, municipal engineering, river dam protection, reinforcement, and anti-brushing construction.

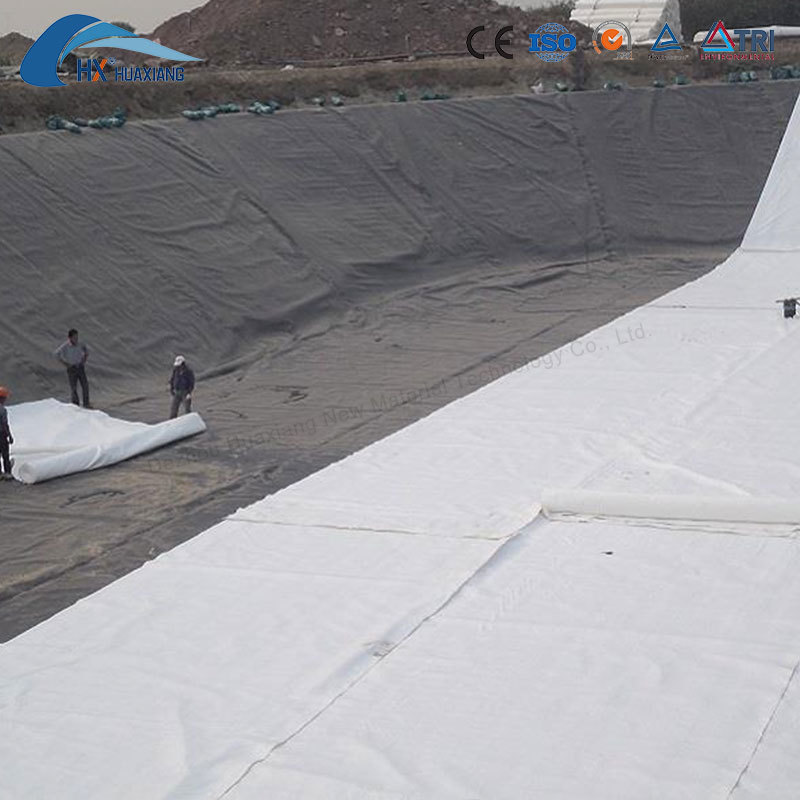

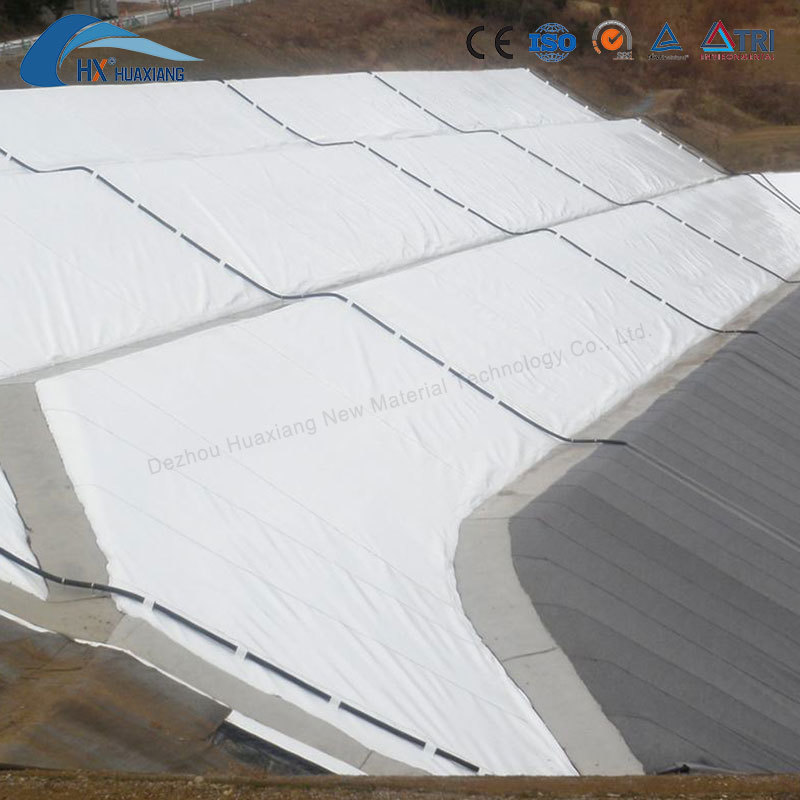

Landfill anti-seepage:
◆ PET filament nonwoven geotextile can be used to increase the stability of gravel slopes and reinforced soil, prevent soil erosion and frost damage to soil at low temperatures.
◆ PET filament nonwoven geotextile can be used to increase the stability of gravel slopes and reinforced soil, prevent soil erosion and frost damage to soil at low temperatures.
◆ PET filament nonwoven geotextile can be used as an isolation layer between artificial filling, stone stacking, or material fields and foundations, as well as for isolation between different frozen soil layers.Geotextiles can isolate different construction materials and maintain their respective properties.
Water conservation engineering：
◆ PET filament nonwoven geotextile can be used as a filter layer around drainage pipes.
◆ PET filament nonwoven geotextile can be used as a filter layer around drainage pipes.
◆PET filament nonwoven geotextile can be used for vertical or horizontal drainage inside earth dams.

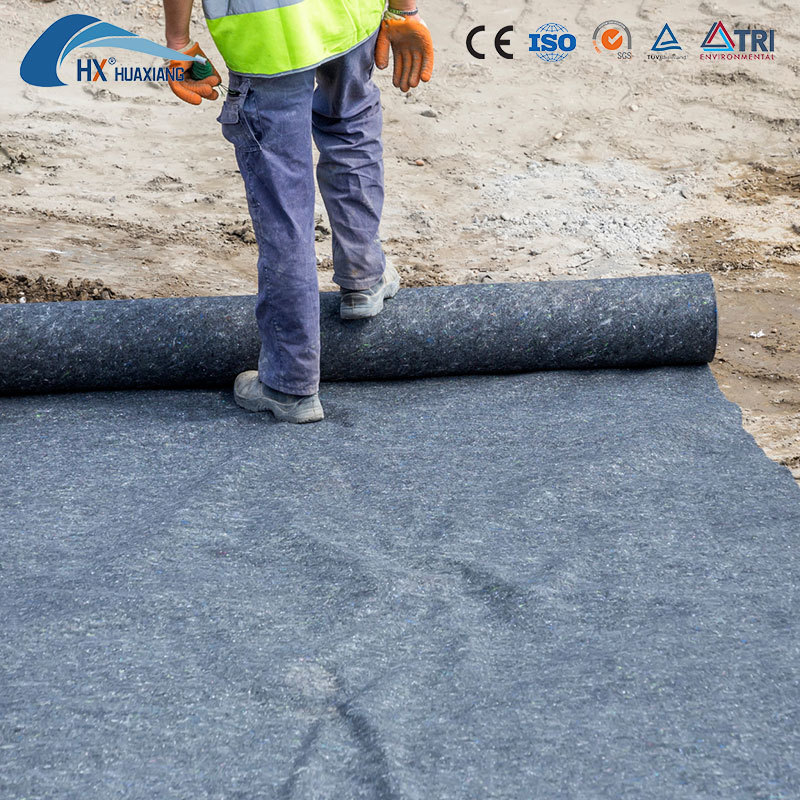

Road protection：
◆ PET filament nonwoven geotextile can be used to strengthen weak foundations in projects such as highways, railways, embankments, airports, and ports.
◆ PET filament nonwoven geotextile can be used to strengthen weak foundations in projects such as highways, railways, embankments, airports, and ports.
 |
 |
 |
 |
Performance
Polyester filament nonwoven geotextile has good mechanical function, good water permeability, corrosion resistance, aging resistance, isolation, anti filtration, drainage, protection, stability,
reinforcement and other functions, can adapt to uneven base course, can resist external force damage during construction, creep is small, and can still maintain its original function under long term load.
◆ Permeability and planar drainage: PET filament nonwoven geotextile is thick and formed, with good planar drainage and vertical permeability, and can still maintain this performance after many years.
◆ Creep resistance: PET filament nonwoven geotextile has better creep resistance than other geotextiles, therefore it has good long term performance. It can withstand the erosion of common
chemical substances in soil and the corrosion of gasoline, diesel, etc.
◆ Ductility: PET filament nonwoven geotextile has good elongation under certain stress, allowing it to adapt to uneven and irregular base surfaces.
reinforcement and other functions, can adapt to uneven base course, can resist external force damage during construction, creep is small, and can still maintain its original function under long term load.
◆ Permeability and planar drainage: PET filament nonwoven geotextile is thick and formed, with good planar drainage and vertical permeability, and can still maintain this performance after many years.
◆ Creep resistance: PET filament nonwoven geotextile has better creep resistance than other geotextiles, therefore it has good long term performance. It can withstand the erosion of common
chemical substances in soil and the corrosion of gasoline, diesel, etc.
◆ Ductility: PET filament nonwoven geotextile has good elongation under certain stress, allowing it to adapt to uneven and irregular base surfaces.
◆ UV resistance: PET filament nonwoven geotextile has extremely high UV resistance and high temperature resistance. The filament geotextile can withstand high temperatures up to 230℃ and still maintain its structural integrity and original physical properties at high temperatures.
 |
 |
 |
| Properties | Unit | ASTM standard |
Test Range | ||||||||||
| Machanical spec |
Unit Weight | g/sqm | ASTM D 5261 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| Ultimate Tensile Strength,MD | kN/m | ASTM D4595 | 7 | 11 | 14 | 17 | 19 | 24 | 27 | 30 | 37 | 45 | |
| Ultimate Tensile Strength,TD | kN/m | ASTM D4595 | 6 | 10 | 12 | 15 | 17 | 21 | 25 | 28 | 34 | 38 | |
| Tensile Elongation | % | ASTM D4595 | 45 | 45 | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 | |
| Grab Tensile Strength,MD | N | ASTM D4632 | 400 | 600 | 850 | 1000 | 1250 | 1450 | 1700 | 1900 | 2100 | 2500 | |
| Grab Tensile Strength,TD | N | ASTM D4632 | 350 | 550 | 700 | 900 | 1100 | 1250 | 1450 | 1600 | 1800 | 2150 | |
| Grab Elongation | % | ASTM D4632 | 45 | 45 | 50 | 50 | 50 | 50 | 60 | 60 | 60 | 60 | |
| Trapezoidal Tear Strength,MD | N | ASTM D4533 | 160 | 300 | 350 | 410 | 490 | 540 | 630 | 710 | 770 | 920 | |
| Trapezoidal Tear Strength,TD | N | ASTM D4533 | 140 | 270 | 330 | 400 | 450 | 510 | 610 | 690 | 750 | 900 | |
| CBR Puncture Strength | N | ASTM D6241 | 1000 | 1500 | 2300 | 2700 | 3200 | 3600 | 4400 | 4500 | 5800 | 6900 | |
| Hydraulic spec |
Water Flow Q100 | L/m2/s | ASTM D4491 | 250 | 235 | 220 | 200 | 185 | 165 | 125 | 110 | 90 | 80 |
| Apparent Opening Size | mm | ASTM D4751 | 0.12 | 0.11 | 0.11 | 0.1 | 0.09 | 0.09 | 0.08 | 0.08 | 0.08 | 0.08 | |
| Roll size | Thickness | mm | ASTM D5199 | 1.2 | 1.8 | 2.3 | 2.9 | 3.2 | 3.6 | 3.9 | 4.2 | 4.4 | 4.8 |
| Width | m | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| Length | m | 300 | 200 | 150 | 100 | 100 | 100 | 80 | 80 | 50 | 50 | ||
